Machinery

At SP-Industry, our modern machinery is ready to serve our customers with precision and quality.

Since 1993, we have continuously invested in state-of-the-art equipment, enabling us to deliver first-class sheet metal, tube, and machining services with short lead times and high precision.

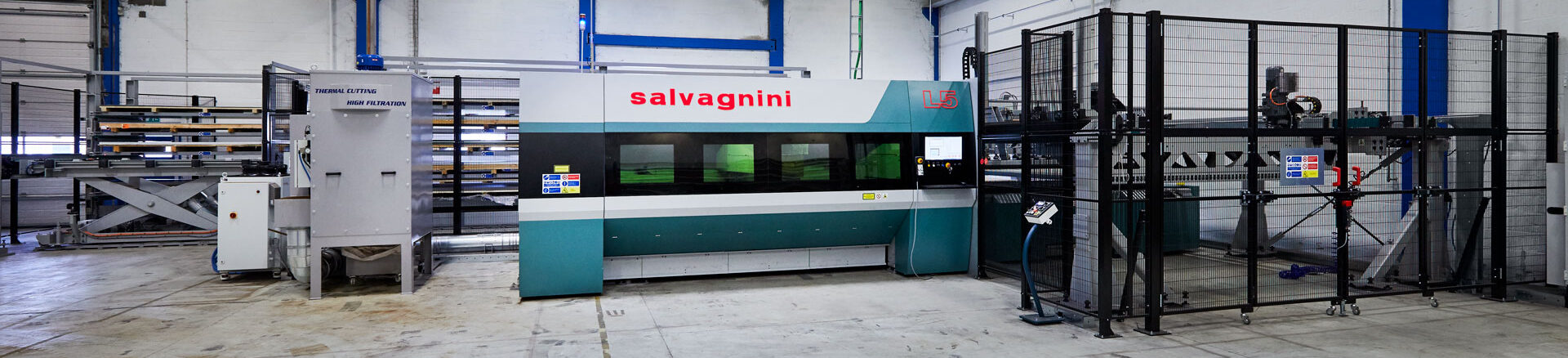

LASER CUTTING

  • Max. sheet size: 3000 × 1500 mm
  • Max. thickness:
    • Stainless steel: 15 mm
    • Mild steel: 20 mm
    • Aluminium: 15 mm
    • Copper: 8 mm
    • Brass: 8 mm
  • We also cut galvanized, foil-coated, patterned, and tread plates.

PANEL BENDING

  • Max. sheet size: 2795 × 1524 mm
  • Max. bending length: 2500 mm
  • Max. bending height: 165 mm
  • Sheet thickness and angles:
    • Stainless steel: 2.5 mm (±90°)
    • Mild steel: 3.2 mm (±90°)
    • Aluminium: 4.0 mm (±120°)
  • Integrated shear and MAC 2.0 technology (in-cycle measurement and compensation)

PRESS BRAKING

  • Press brake 220T – 4250 mm CNC controlled
  • Press brake 100T – 3000 mm CNC controlled
  • Press brake 50T – 2000 mm CNC controlled

WELDING

  • 1 MAG/TIG welding robot
    • 6-axis robot
    • Load capacity per workstation: max. 250 kg
    • Clamping length: max. 2000 mm and Ø800 mm in diameter
    • Motionweld technology for thin sheet aluminium, stainless steel, and mild steel
  • Laser welding
    • 3 × 1.5 kW handheld units
    • Up to 5× faster than conventional TIG welding
  • Manual welding machines
    • MIG/MAG/TIG – Kemppi / Migatronic

MACHINING

  • 1 CNC Lathe
    • Max. bar size: Ø32 × 3000 mm
    • Max. chucking diameter: Ø40 mm
    • 1,2m bar feeder
  • 1 CNC Lathe
    • Max. bar size: Ø45 × 3000 mm
    • Max. chucking diameter: Ø45 mm
    • C-axis for milling
    • 3m bar feeder
    • Equipped with sub-spindle
  • 1 CNC Lathe
    • Max. workpiece size: Ø60 mm
    • Max. chuck size: Ø250 mm
    • Max. turning length: 500 mm
  • 1 CNC Lathe
    • Max. bar size: Ø65 × 1200 mm
    • Max. chucking diameter: Ø402 mm
    • Max. turning length: 640 mm
    • 120 mm Y-axis
    • 1,2m bar feeder
    • Equipped with sub-spindle
  • 1 CNC Lathe
    • Max. workpiece size: Ø76 mm
    • Max. chuck size: Ø380 mm
    • Max. turning length: 1230 mm
    • 100 mm Y-axis, synchronous C-axis
  • 1 CNC Horizontal Machining Center
    • X-Y-Z: 1200 – 600 – 630 mm
    • Internal cooling
    • Synchronous indexing head
  • 1 CNC Horizontal Machining Center
    • X-Y-Z: 1270 – 520 – 540 mm
    • 100% plastic machining
    • Simultaneous horizontal rotary table

DEBURRING / GRINDING

  • Costa: max. width 1200 mm
  • Long-belt grinding: 1500 mm
  • Fladder: max. width 1100 mm
  • Vibratory deburring

GLASS BEAD BLASTING

  • Max. workpiece size: 4000 × 2000 × 2000 mm
  • Stainless steel and aluminium only

CNC SAWING

  • Max. Ø420 mm
  • Bundle clamping: 400 × 400 mm
